Poukisa Chwazi GNEE RAIL

Etabli an 2008, GNEE RAIL fabrike ak founi ray asye, ray teknik, sistèm fixation tren, ak konpozan tras pou tren, pò, min, ak pwojè endistriyèl. Pwosesis fabrikasyon nou an konbine pwodiksyon estanda, enspeksyon kalite, ak sipò jeni pou satisfè egzijans teknik espesifik pwojè-.

✔Estanda Entènasyonal: Pwodwi yo fabrike an akò ak estanda AREMA, UIC, EN, DIN, BS, JIS, ak GB, ak espesifikasyon estanda ak Customized ki disponib.

✔Enspeksyon Kalite: Kontwòl Kalite kouvri verifikasyon materyèl, tès mekanik, enspeksyon dimansyon, ak tès ki pa -destriktif. EN 10204 3.1 Sètifika Tès Mill (MTC) ak sèvis enspeksyon twazyèm-pati yo disponib sou demann.

✔Sèvis Faktori: Sèvis pwosesis yo enkli koupe, perçage, machin, tretman sifas, ak anbalaj ekspòtasyon ki baze sou desen kliyan ak kondisyon teknik.

✔Ekspòtasyon anbalaj & lojistik: pwodwi yo chaje selon ekspòtasyon ak egzijans pwojè, ak dokiman anbake konplè ak aranjman chaje pou transpò entènasyonal.

Rails Steel pa estanda entènasyonal yo

Ray estanda Amerik yo
GB ak Azi-Rail Estanda Pasifik yo
Rail estanda Ewopeyen an
GOST Standard Rails
Tram Rails

Ray estanda Amerik yo

Estanda: ASTMA1, AREMA
Gwosè	Dimansyon (mm)				Pwa	Materyèl	Longè (m)
Gwosè	Tèt (mm)	Wotè (mm)	Anba (mm)	Web (mm)	(kg/m)	Materyèl	Longè (m)
ASCE 25	38.1	69.85	69.85	7.54	12.4	700	6m-12m
ASCE 30	42.86	79.38	79.38	8.33	14.88	700
ASCE 40	47.62	88.9	88.9	9.92	19.84	700
ASCE 60	60.32	107.95	107.95	12.3	29.76	700
ASCE 75	62.71	122.24	122.24	13.49	37.2	900A/1100	12m-25m
ASCE 85	65.09	131.76	131.76	14.29	42.17	900A/1100
90RA	65.09	142.88	130.18	14.29	44.65	900A/1100
115RE	69.06	168.28	139.7	15.88	56.9	900A/1100
136RE	74.61	185.74	152.4	17.46	67.41	900A/1100
175 liv	109.86	152.4	152.4	38.1	86.8	900A/1100

GB ak Azi-Rail Estanda Pasifik yo

Estanda: GB11264-89
Gwosè	Dimansyon (mm)				Pwa	Materyèl	Longè (m)
Gwosè	Tèt (mm)	Wotè (mm)	Anba (mm)	Web (mm)	(kg/m)	Materyèl	Longè (m)
GB6KG	25.4	50.8	50.8	4.76	5.98	Q235B	6m-12m
GB9KG	32.1	63.5	63.5	5.9	8.94	Q235B
GB12KG	38.1	69.85	69.85	7.54	12.2	Q235B/55Q
GB15KG	42.86	79.37	79.37	8.33	15.2	Q235B/55Q
GB22KG	50.3	93.66	93.66	10.72	23.3	Q235B/55Q
GB30KG	60.33	107.95	107.95	12.3	30.1	Q235B/55Q
Estanda: YB222-63
Gwosè	Dimansyon (mm)				Pwa	Materyèl	Longè (m)
Gwosè	Tèt (mm)	Wotè (mm)	Anba (mm)	Web (mm)	(kg/m)	Materyèl	Longè (m)
8KG	25	65	54	7	8.42	Q235B	6m-12m
18KG	40	90	80	10	18.06	Q235B/55Q
24KG	51	107	92	10.9	24.46	Q235B/55Q
P38KG	68	134	114	13	38.733	U71Mn	12.5m-25m
P43KG	70	140	114	14.5	44.653	U71Mn
P50KG	70	152	132	15.5	51.514	U71Mn
P60KG	73	170	150	16.5	61.64	U71Mn
Estanda: YB/T5055-93
Gwosè	Dimansyon (mm)				Pwa	Materyèl	Longè (m)
Gwosè	Tèt (mm)	Wotè (mm)	Anba (mm)	Web (mm)	(kg/m)	Materyèl	Longè (m)
QU 70	70	120	120	28	52.8	U71Mn	12
QU 80	80	130	130	32	63.69	U71Mn
QU 100	100	150	150	38	88.96	U71Mn
QU 120	120	170	170	44	118.1	U71Mn
Estanda: JIS E1101-91/JIS E 1101-93
Gwosè	Dimansyon (mm)				Pwa	Materyèl	Longè (m)
Gwosè	Tèt (mm)	Wotè (mm)	Anba (mm)	Web (mm)	(kg/m)	Materyèl	Longè (m)
JIS 15KG	42.86	79.37	79.37	8.33	15.2	JIS E estanda	9m~19m
JIS 22KG	50.8	93.66	93.66	10.72	22.3
JIS 30KG	60.33	107.95	107.95	12.3	30.1
JIS 37A	62.71	122.24	122.24	13.49	37.2		10m~25m
JIS 50N	65	153	127	15	50.4
CR 73	100	135	140	32	73.3
CR 100	120	150	155	39	100.2
Estanda Ostralyen Railway: AS1085
Gwosè	Dimansyon (mm)				Pwa	Longè (m)	Materyèl
Gwosè	Tèt (mm)	Wotè (mm)	Anba (mm)	Web (mm)	(kg/m)	Longè (m)	Materyèl
31KG	63.5	117.5	108	11.5	31.5	8m-25m	900A/1100
47KG	70	141.3	127	14.3	46.5
50KG	70	154	127	15	50.8
60KG	70	170	146	16.5	61
68KG	73.4	186	152	17.5	67.6
73KG	70	157	146	32	73.63
86KG	102	102	155	84.11	85.5
89KG	102	114	178	51	89.81

Rail estanda Ewopeyen an

Estanda: UIC860
Gwosè	Dimansyon (mm)				Pwa	Materyèl	Longè (m)
Gwosè	Tèt (mm)	Wotè (mm)	Anba (mm)	Web (mm)	(kg/m)	Materyèl	Longè (m)
UIC50	70	152	125	15	50.46	900A/1100	12m-25m
UIC54	70	159	140	16	54.43	900A/1100
UIC60	74.3	172	150	16.5	60.21	900A/1100
Estanda: EN 13674-1-2003
Gwosè	Dimansyon (mm)				Pwa	Materyèl	Longè (m)
Gwosè	Tèt (mm)	Wotè (mm)	Anba (mm)	Web (mm)	(kg/m)	Materyèl	Longè (m)
49 E1	67	149	125	14	49.39	R260/R350HT	12m~25m
49 E2	67	148	125	14	49.1
50 E1	65	153	134	15.5	50.37
50 E2	72	151	140	15	49.97
50 E4	70	152	125	15	50.46
50 E5	67	148	135	14	49.9
50 E6	65	153	140	15.5	50.9
54 E1	70	159	140	16	54.77
54 E2	67.01	161	125	16	53.82
54 E3	67	154	125	16	54.57
55 E1	62	155	134	19	56.03
60 E1	72	172	150	16.5	60.21
Estanda: DIN536
Gwosè	Dimansyon (mm)				Pwa	Materyèl	Longè (m)
Gwosè	Tèt (mm)	Wotè (mm)	Anba (mm)	Web (mm)	(kg/m)	Materyèl	Longè (m)
A55	55	65	150	31	31.8	900A	10m~12m
A65	65	75	175	38	43.1
A75	75	85	200	45	56.2
A100	100	95	200	60	74.3
A120	120	105	220	72	100
Estanda: BS11: 1985
Gwosè	Dimansyon (mm)				Pwa	Materyèl	Longè (m)
Gwosè	Tèt (mm)	Wotè (mm)	Anba (mm)	Web (mm)	(kg/m)	Materyèl	Longè (m)
50 O	52.39	100.01	100.01	10.32	24.833	700	6m~18m
60 A	57.15	114.3	109.54	11.11	30.618	900A	6m~18m
75 A	61.91	128.59	114.3	12.7	37.455		8m~25m
75 R	61.91	128.59	122.24	13.1	37.041
80 A	63.5	133.35	117.47	13.1	39.761
80 R	63.5	133.35	127	13.49	39.674
90 A	66.67	142.88	127	13.89	45.099
100 A	69.85	152.4	133.35	15.08	50.182
113 A	69.85	158.75	139.7	20	56.398

GOST Standard Rails

Kalite Rail	Wotè (mm)	Baz (mm)	Lajè tèt (mm)	Web (mm)	Steel Klas	Mas (kg/m)
P50	152	132	72	16	50Mn/U71Mn	51.8
P65	180	150	75	18	50Mn/U71Mn	64.88
P75	192	150	75	20	50Mn/U71Mn	74.41
KP70	120	120	70	23	U71Mn	52.8
KP80	130	130	80	28	U71Mn	63.96
KP100	150	150	100	34	U71Mn	88.96
KP120	170	170	120	40	U71Mn	118.1
KP140	170	170	140	58	U71Mn	141.7

Tram Rails

Gwosè	Wotè (mm)	Anba (mm)	Tèt A (mm)	Tèt B (mm)	Chanèl A (mm)	Chanèl B (mm)	Web (mm)	Pwa (kg/m)
59R1	180	180	113	56	42	15	12	58.97
59R2	180	180	113	55.83	42.52	14.65	12	58.14
60R1	180	180	113	56	36	21	12	60.59
60R2	180	180	113	55.83	36.34	20.83	12	59.75

Mande Pri Rail Groove

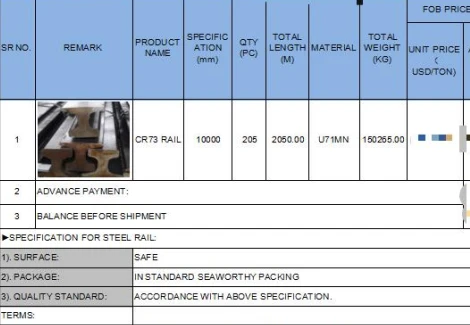

GNEE RAIL Exported CR73 Crane Rails to Vietnam

GNEE RAIL Ekspòte CR73 Crane Rails nan Vyetnam

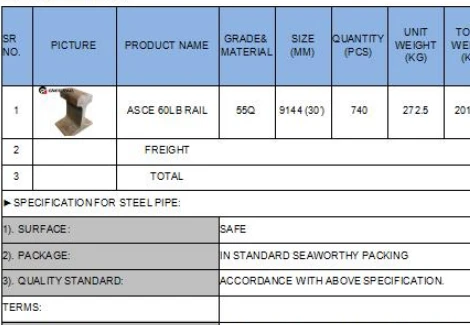

GNEE RAIL Exported ASCE 60LB Steel Rails to Mexico

GNEE RAIL Ekspòte ASCE 60LB Steel Rails nan Meksik

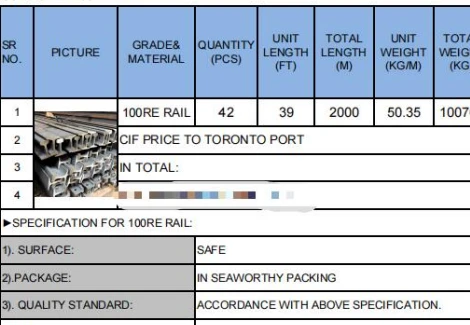

GNEE RAIL Exported 100LB Steel Rails to Canada

GNEE RAIL Ekspòte 100LB Steel Rails nan Kanada

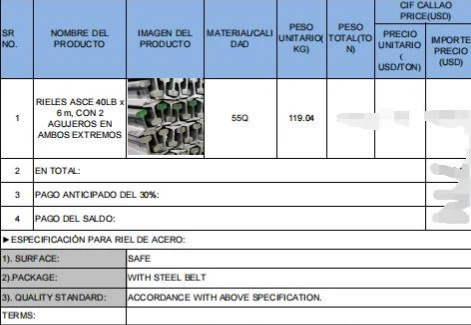

GNEE RAIL Exported 40LB Steel Rails to Peru

GNEE RAIL ekspòte 40LB Steel Rails nan Perou

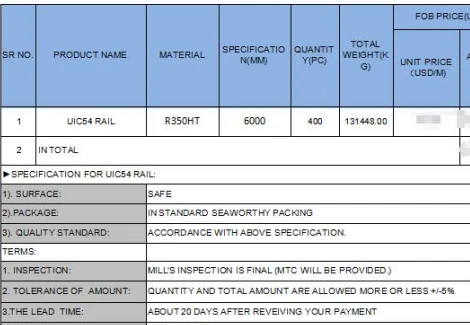

GNEE RAIL Exported UIC54 Steel Rails to Vietnam

GNEE RAIL Ekspòte UIC54 Steel Rails nan Vyetnam

GNEE RAIL Exported S20 Steel Rails to Indonesia

GNEE RAIL ekspòte S20 Steel Rails nan Endonezi

GNEE RAIL Exported Rail Spikes to Argentina

GNEE RAIL Ekspòte Spikes Rail nan Ajantin

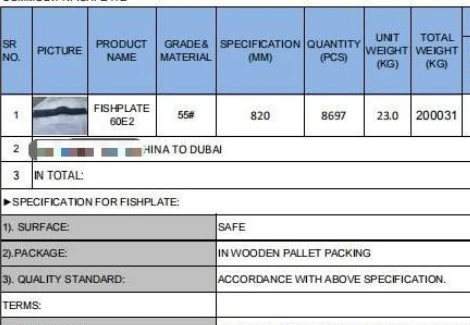

GNEE RAIL Exported Rail Joint Bars to Dubai

GNEE RAIL ekspòte ba Joint Rail nan Doubay

GNEE RAIL Exported GB 43KG Steel Rails to Sri Lanka

GNEE RAIL ekspòte GB 43KG Steel Rails nan Sri Lanka

GNEE RAIL Exported ASCE 60LB Steel Rails to Mexico-BL

GNEE RAIL Ekspòte Rail Steel ASCE 60LB nan Meksik-BL

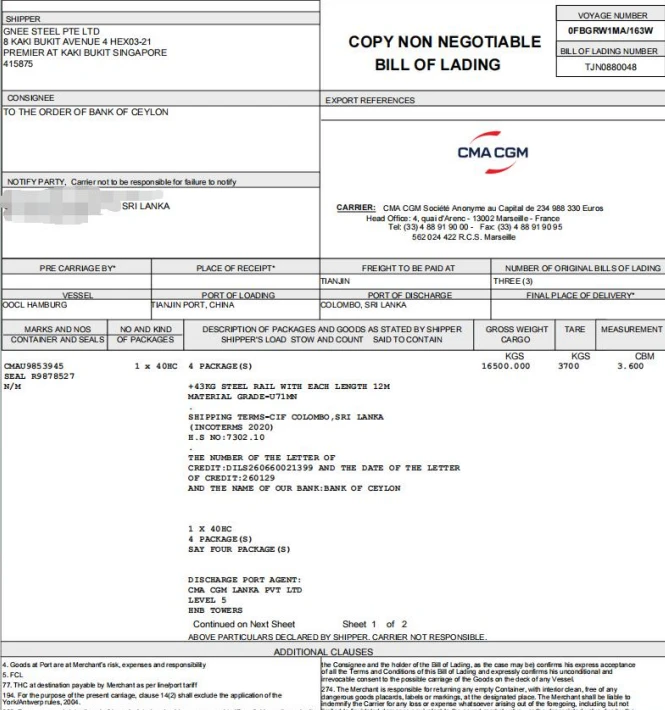

GNEE RAIL Exported GB 43KG Steel Rails to Sri Lanka - BL

GNEE RAIL ekspòte GB 43KG ray asye nan Sri Lanka - BL

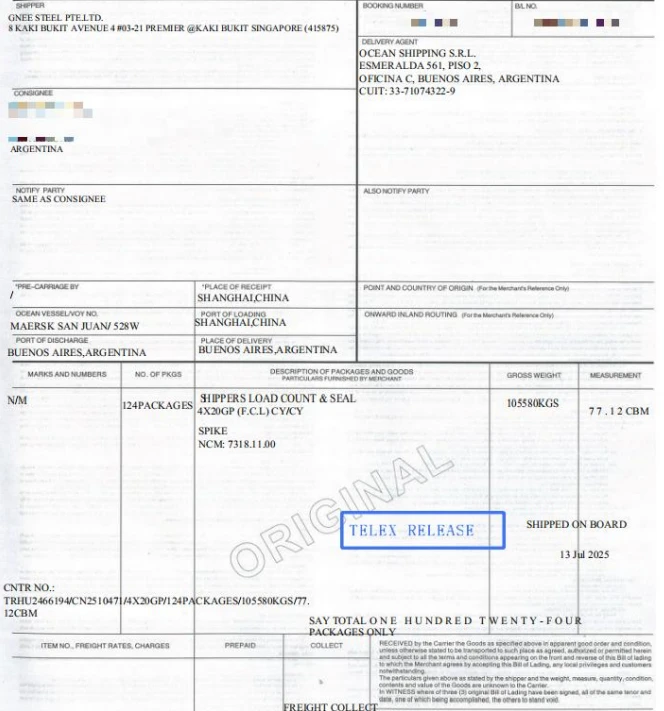

GNEE RAIL Exported Rail Spikes to Argentina -BL

GNEE RAIL Ekspòte Spikes Rail nan Ajantin -BL

GNEE RAIL Exported 40LB Steel Rails to Peru - MTC

GNEE RAIL Ekspòte 40LB Rail Steel nan Perou - MTC

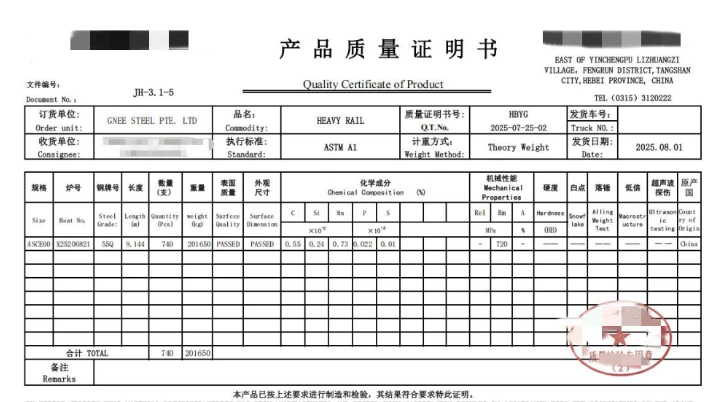

GNEE RAIL Exported ASCE 60LB Steel Rails to Mexico -MTC

GNEE RAIL Ekspòte Rail Steel ASCE 60LB nan Meksik -MTC

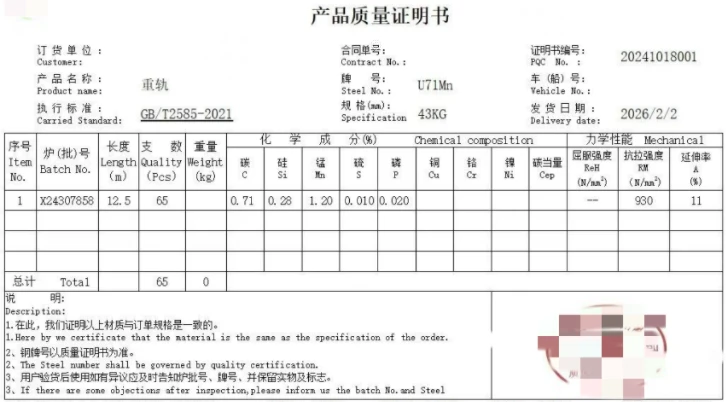

GNEE RAIL Exported GB 43KG Steel Rails to Sri Lanka -MTC

GNEE RAIL ekspòte GB 43KG ray asye nan Sri Lanka -MTC

40LB Rail ekspòtasyon anbalaj

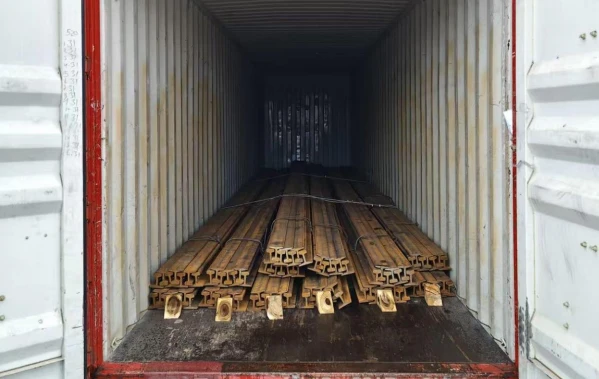

CR73 Rail Container Loading
